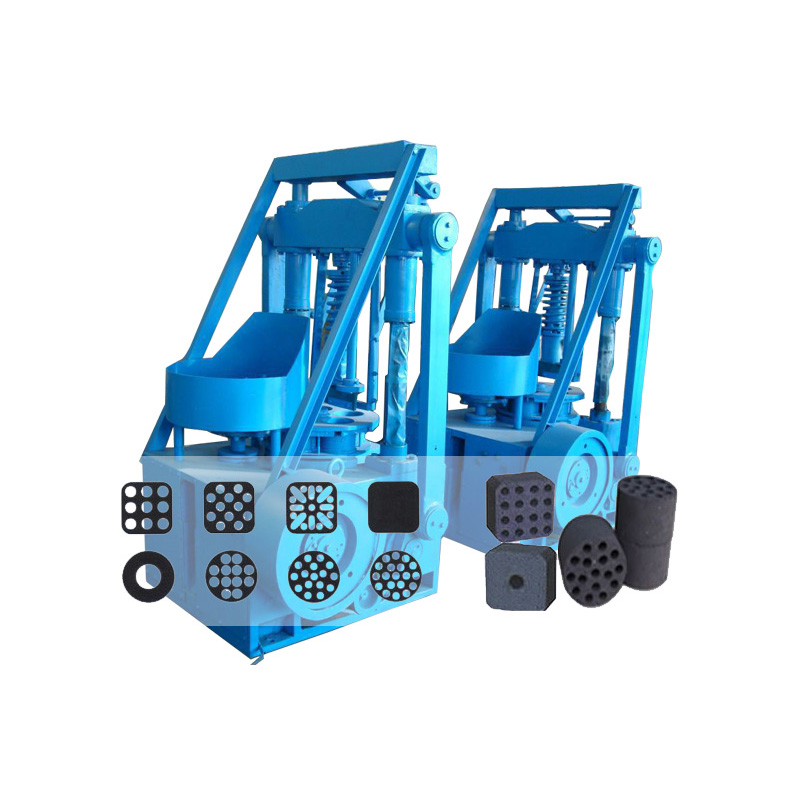

Punching Type Coal/charcoal Briquette Machine
Details
Product Description
Punching type coal/charcoal briquette machine is one of the coal/charcoal-forming processing equipment. Being assembled the different moulds, users can get the honeycomb round and cubic coal/charcoal beehive briquettes. The HSMQ Series Briquette Machine is not only applicable to single machine processing, but also to the large-scale coal/charcoal briquetting production line.
Originally, coa/charcoall Briquette Press only produced coal honeycomb briquettes. However, after our researching and developing, the final briquettes also can be punched press into hexagonal and round cylinder shape briquettes, which are widely used in BBQ field and shisha charcoal field.
.
Finished Products

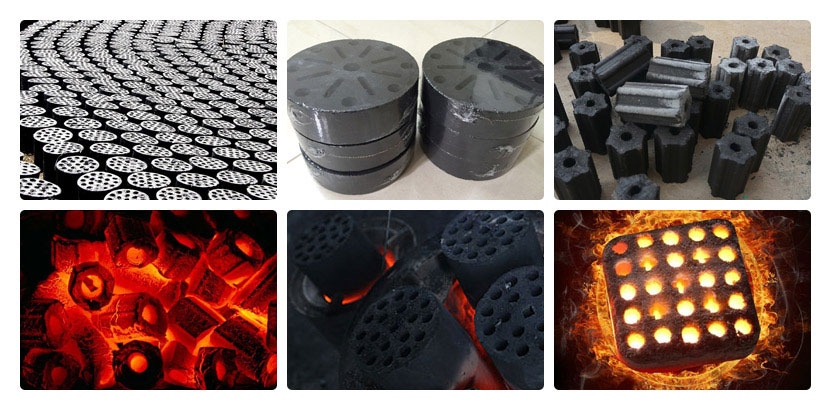

Finished honeycomb briquettes
Raw Material

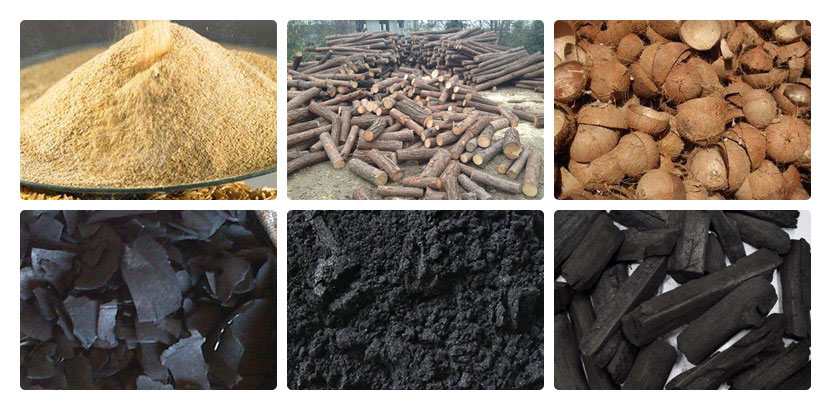

Applicable raw materials
Workflow
After the pressing process, the raw material charcoal/coal powder and binder will be pressed into solid briquettes. The basic processes are list as below. Not all these processes are necessary, it all depends on the situation of your raw materials. Please don’t hesitate o contact with us if you need any suggestion on charcoal briquettes production.

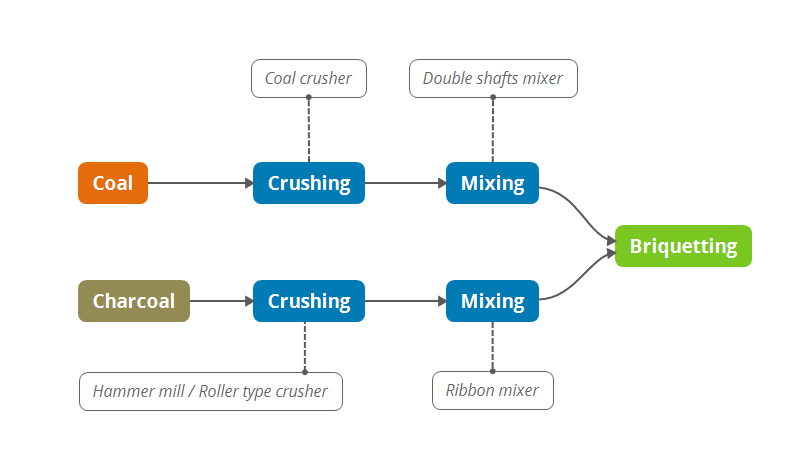

The workflow is like this:
Advantages & Features
- 30 years manufacturing experiences;
- Stable and reliable performance;
- CNC processing mould;
- Flexible moulds customization;
- Production line expert consultation.
Advantages & Features
Model |
HSMQ-01 |
HSMQ-02 |
HSMQ-03 |
HSMQ-04 |
Capacity |
45-50 pcs/min |
45-50 pcs/min |
45-50 pcs/min |
25 pcs/min |
Power( KW) |
7.5 |
7.5 |
7.5 |
11 |
Diameter Of Mould(MM) |
120 |
140 |
160 |
220 |
Feeding Height(MM) |
930 |
980 |
1000 |
1050 |
